16 In 16 Out Matrix HDMI Video Wall Controller With HDBaseT Port 2x2 3x3 hdmi

Brand Name : VINCAN

Model Number : WL-HDVP

Certification : CE,FCC and RoHs

Place of Origin : Mainland China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per week

Delivery Time : 2-3 days

Packaging Details : Carton box and standard export package for 16 In 16 Out Matrix HDMI Video Wall Controller With HDBaseT Port 2x2 3x3 hdmi

Product name : 16 In 16 Out Matrix HDMI Video Wall Controller With HDBaseT Port 2x2 3x3 hdmi

Inputs : 16 Channel HDBaseT Input port

Outputs : 16 Channel HDBaseT Output port

Input resolution : XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution

Output resolution : 1920*1200/60HZ (compatible with standard resolution )

system control software : Application Pro dedicated control software

Power : Dual power supplies 100AC~240VAC,50/60Hz, more trustable hot-swappable power supply working mode, internationally self-adaptive power

consumption : 12w per channel

Contact Now

16 In 16 Out Matrix HDMI Video Wall Controller With HDBaseT Port 2x2 3x3 hdmi



Introduction :

HD digital video wall processor is the newest version of image controller; it displays the various analog/digital images,

video source on the output device: LCD wall, surveillance system or others. The video wall processor adopts

brand new modular concept that the input cards and output cards can be used in any combination, in any order and

in any slots on the backplane; moreover, display devices can be controlled and connected via transmitting signal

with multiple video wall processors used in seamless conjunction.


Technical Parameters



Description :



Up to sixteen video windows per display channel (Optional)



Inputs (Optional) :

DVI/HDMI/VGA/YpbPr/VIDEO/SDI/S-Video

Input resolution :



XGA/SXGA/SXGA+/UVGA/WUXGA/1080p,etc, compatible with custom ultra-high resolution

Output Signal :



DVI/VGA output

Output resolution :



1920*1200/60HZ (compatible with standard resolution )

system control software :



Application Pro dedicated control software

Power :


Dual power supplies 100AC~240VAC,50/60Hz, more trustable
hot-swappable power supply working mode, internationally
self-adaptive power




consumption :

12w per channel

working temperature :



-20℃——60℃

working humidity :



5-95%



Chassis size :

5U/7U/15U standard rackmount chassis



Serial port :

RS-232, 9 pin, D-type connector



Baud rate :

115200



Serial port architecture :



2=TX,3=RX,5=GND



Ethernet control port :

RJ-45 female ports, TCP/IP protocol

Ethernet control speed :



Self-adaptive 10M or 100M, full duplex or half duplex



Working hours :

7 days x 24 hours
Product name 16 In 16 Out Matrix HDMI Video Wall Controller With HDBaseT Port 2x2 3x3 hdmi

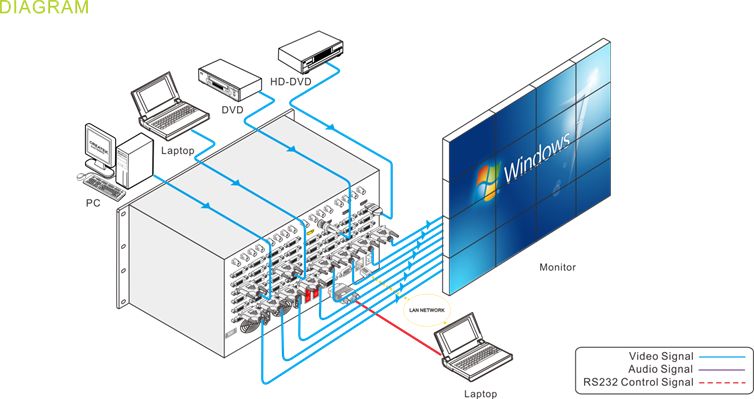

System Diagram:

16 In 16 Out Matrix HDMI Video Wall Controller With HDBaseT Port 2x2 3x3 hdmi



FAQ

1. Q: Are you a factory or trading company ?
A: We are direct manufacturer , respectively located in Shenzhen,Guangdong
province of China. Manufacturing Video wall controller,video wall processor,modular matrix switcher, HDMl matrix and HDMI Extender etc



2. Q: Could you offer samples for testing our market first ? How long does it take to send samples?
A: Yes, we accept sample orders, usually samples will be sent within 1-2 days.



3. Q: Is there any certificates provide ?
A: Yes , we got CE, ROHS , Fcc , certificates , and with test reports.



4. Q: Can you customize products ?
A: Yes , OEM and ODM is workable for us , just send your needing to us , and our engineers will work on it for you.



5. Q: What is the MOQ for customize order ?
A: Usually , 20 pcs as needed for customize logo , and 1000pcs as needed for customize box.


Our service:

16 In 16 Out Matrix HDMI Video Wall Controller With HDBaseT Port 2x2 3x3 hdmi
