4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output

  • 1
  • 2

Brand Name : VINCAN

Model Number : WL-0901M

Certification : CE,FCC and RoHs

Place of Origin : Mainland China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per week

Delivery Time : 2-3 days

Packaging Details : Carton box and standard export package for 4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output

HDMI Compliance : HDMI 1.4b

Video Resolutions : 4K2K@30Hz YUV4:4:4、RGB4:4:4

Color Depth : 8-bit

Color Space : RGB, YUV4:4:4, YUV 4:2:2

HDMI Audio Formats : LPCM 2.0

Power Supply : Input: AC100~240V 50/60Hz, Output: DC12V/1A (US/EU standards, CE/FCC/UL certified)

Power Consumption : 7.8W (max)

Product name : 4K HDMI Multiviewer

Contact Now

4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output



1. Introduction

4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output;

This switcher is a suitable solution for presentation purpose at classroom and conference room.



2. Features

☆ HDMI 1.4b, HDCP 1.4 compliant;

☆ Input video resolution up to 1080p@60Hz, Output up to 4K2K@30Hz ☆ 9x HDMI inputs, 1x HDMI

and 1x de-embedded analog audio output ☆ Fast seamless switching with scaling up to 3840x2160p (4K);

☆ Supports 1/2/4/9 windows multi-view modes;

☆ Display 4x full HD signals within one 4K display with pixel-to-pixel quality;

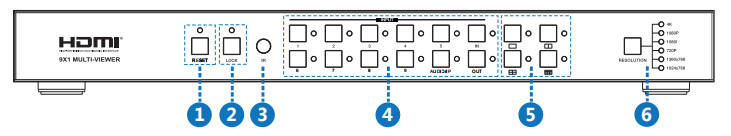

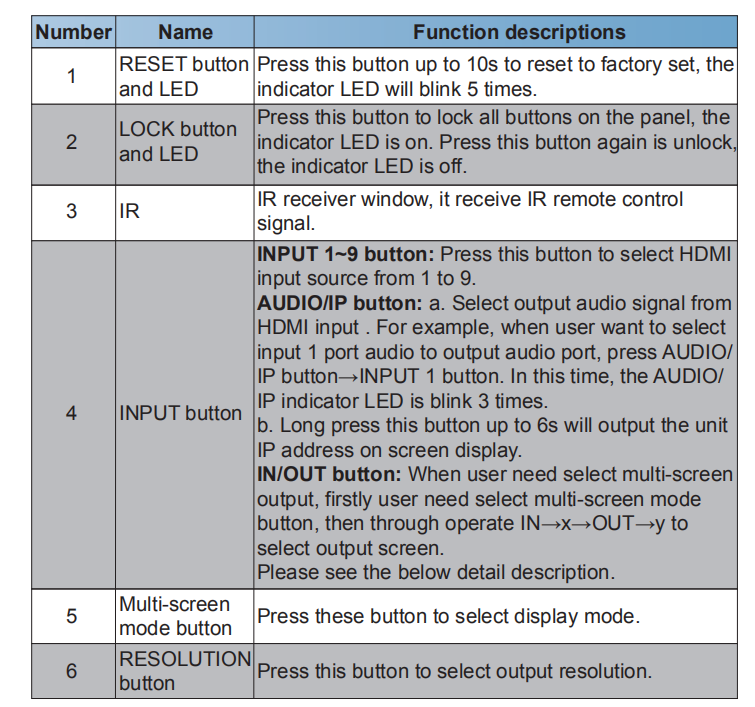

☆ Control is via on-panel button, IR, RS-232, LAN or Web GUI;

☆ 1U rack mounted design;

☆ 4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output;



3. Specification

HDMI Compliance HDMI 1.4b
HDCP Compliance HDCP 1.4
Video Bandwidth 3Gbps
Video Resolutions 4K2K@30Hz YUV4:4:4,RGB4:4:4
Color Depth 8-bit
Color Space RGB, YUV4:4:4, YUV 4:2:2
HDMI Audio LPCM 2.0
Formats

ESD Protection Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)

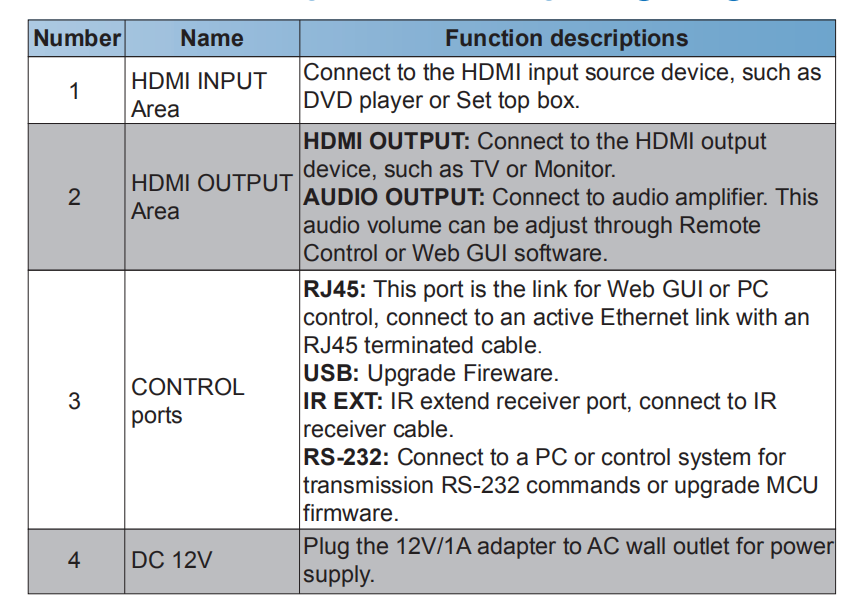

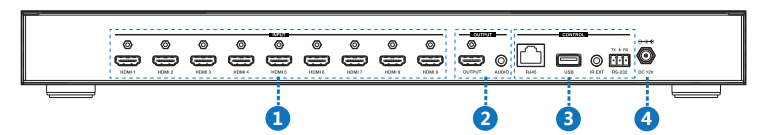

Connections
  9x HDMI Type A [19-pin female]
Inputs 1x RJ45 [8-pin female]
1x RS-232 [Phoenix jack]

  1x USB [USB-A]
  1x IR EXT [3.5mm Stereo Mini-jack]

Outputs 1x HDMI Type A [19-pin female]
1x Audio Out [3.5mm Stereo Mini-jack]

Mechanical
Housing Metal Enclosure
Color Black

Dimensions 440mm (W)×200mm (D)×44.5mm (H)
Weight 2.26kg
Power Supply Input: AC100~240V 50/60Hz, Output: DC12V/1A
(US/EU standards, CE/FCC/UL certified)

Power 7.8W (max)
Consumption

Operating 0°C ~ 40°C / 32°F ~ 104°F
Temperature

Storage -20°C ~ 60°C / -4°F ~ 140°F
Temperature

Relative Humidity 20~90% RH (non-condensing)
Product name 4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output



4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output

4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output

4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output

4K HDMI Multiviewer 8 Channels Input 9 Channels Input 1 x 4k HDMI Output
